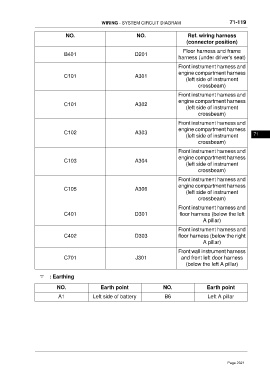

WIRING - SYSTEM CIRCUIT DIAGRAM 71-119

NO. NO. Ref. wiring harness
(connector position)

Floor harness and frame
B401 D201
harness (under driver's seat)
Front instrument harness and
engine compartment harness
C101 A301
(left side of instrument
crossbeam)
Front instrument harness and
engine compartment harness
C101 A302
(left side of instrument
crossbeam)
Front instrument harness and
engine compartment harness
C102 A303
(left side of instrument 71
crossbeam)
Front instrument harness and
engine compartment harness
C103 A304
(left side of instrument
crossbeam)
Front instrument harness and
engine compartment harness
C105 A306
(left side of instrument
crossbeam)
Front instrument harness and
C401 D301 floor harness (below the left
A pillar)
Front instrument harness and
C402 D303 floor harness (below the right
A pillar)
Front wall instrument harness
C701 J301 and front left door harness
(below the left A pillar)

: Earthing

NO. Earth point NO. Earth point
A1 Left side of battery B6 Left A pillar
