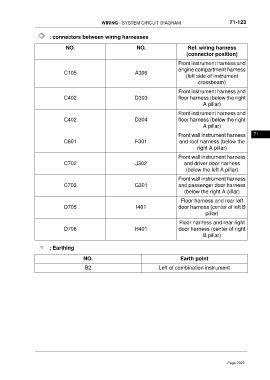

WIRING - SYSTEM CIRCUIT DIAGRAM 71-123

: connectors between wiring harnesses

NO. NO. Ref. wiring harness
(connector position)
Front instrument harness and
engine compartment harness
C105 A306
(left side of instrument
crossbeam)
Front instrument harness and
C402 D303 floor harness (below the right
A pillar)
Front instrument harness and
C402 D304 floor harness (below the right
A pillar)

Front wall instrument harness 71
C601 F301 and roof harness (below the
right A pillar)

Front wall instrument harness
C702 J302 and driver door harness
(below the left A pillar)

Front wall instrument harness
C703 G301 and passenger door harness
(below the right A pillar)
Floor harness and rear left
D705 I401 door harness (center of left B
pillar)
Floor harness and rear right
D706 H401 door harness (center of right
B pillar)

: Earthing
NO. Earth point

B2 Left of combination instrument
