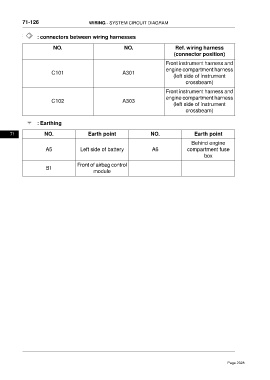

71-126 WIRING - SYSTEM CIRCUIT DIAGRAM
: connectors between wiring harnesses
NO. NO. Ref. wiring harness
(connector position)
Front instrument harness and
engine compartment harness
C101 A301
(left side of instrument
crossbeam)
Front instrument harness and
engine compartment harness
C102 A303
(left side of instrument
crossbeam)
: Earthing
71 NO. Earth point NO. Earth point
Behind engine
A5 Left side of battery A6 compartment fuse
box
Front of airbag control
B1 — —
module
