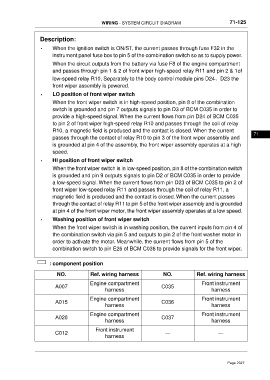

WIRING - SYSTEM CIRCUIT DIAGRAM 71-125

Description:

• When the ignition switch is ON/ST, the current passes through fuse F32 in the
instrument panel fuse box to pin 5 of the combination switch so as to supply power.
When the circuit outputs from the battery via fuse F8 of the engine compartment
and passes through pin 1 & 2 of front wiper high-speed relay R11 and pin 2 & 1of

low-speed relay R10, Separately to the body control module pins D24、D23 the
front wiper assembly is powered.
• LO position of front wiper switch
When the front wiper switch is in high-speed position, pin 8 of the combination
switch is grounded and pin 7 outputs signals to pin D3 of BCM C035 in order to
provide a high-speed signal. When the current flows from pin D24 of BCM C035
to pin 2 of front wiper high-speed relay R10 and passes through the coil of relay
R10, a magnetic field is produced and the contact is closed. When the current
71
passes through the contact of relay R10 to pin 3 of the front wiper assembly and
is grounded at pin 4 of the assembly, the front wiper assembly operates at a high
speed.

• HI position of front wiper switch
When the front wiper switch is in low-speed position, pin 8 of the combination switch
is grounded and pin 9 outputs signals to pin D2 of BCM C035 in order to provide
a low-speed signal. When the current flows from pin D23 of BCM C035 to pin 2 of
front wiper low-speed relay R11 and passes through the coil of relay R11, a
magnetic field is produced and the contact is closed. When the current passes
through the contact of relay R11 to pin 5 of the front wiper assembly and is grounded
at pin 4 of the front wiper motor, the front wiper assembly operates at a low speed.

• Washing position of front wiper switch
When the front wiper switch is in washing position, the current inputs from pin 4 of
the combination switch via pin 5 and outputs to pin 2 of the front washer motor in
order to activate the motor. Meanwhile, the current flows from pin 5 of the
combination switch to pin E26 of BCM C036 to provide signals for the front wiper.

: component position

NO. Ref. wiring harness NO. Ref. wiring harness

Engine compartment Front instrument
A007 C035
harness harness
Engine compartment Front instrument
A015 C036
harness harness
Engine compartment Front instrument
A020 C037
harness harness

Front instrument
C012 — —
harness
