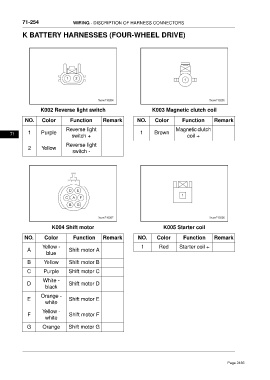

71-254 WIRING - DISCRIPTION OF HARNESS CONNECTORS
K BATTERY HARNESSES (FOUR-WHEEL DRIVE)
K002 Reverse light switch K003 Magnetic clutch coil
NO. Color Function Remark NO. Color Function Remark
Reverse light Magnetic clutch
71 1 Purple 1 Brown
switch + coil +
Reverse light
2 Yellow
switch -
K004 Shift motor K005 Starter coil
NO. Color Function Remark NO. Color Function Remark
Yellow - 1 Red Starter coil +
A Shift motor A
blue
B Yellow Shift motor B
C Purple Shift motor C
White -
D Shift motor D
black
Orange -
E Shift motor E
white
Yellow -
F Shift motor F
white
G Orange Shift motor G
