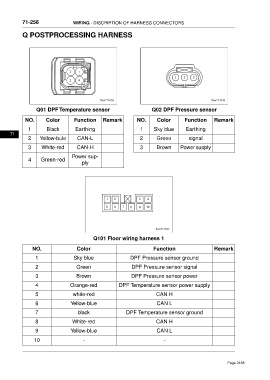

71-256 WIRING - DISCRIPTION OF HARNESS CONNECTORS
Q POSTPROCESSING HARNESS
Q01 DPF Temperature sensor Q02 DPF Pressure sensor
NO. Color Function Remark NO. Color Function Remark
1 Black Earthing 1 Sky blue Earthing
71
2 Yellow-bule CAN-L 2 Green signal
3 White-red CAN-H 3 Brown Power supply
Power sup-
4 Green-red
ply
Q101 Floor wiring harness 1
NO. Color Function Remark
1 Sky blue DPF Pressure sensor ground
2 Green DPF Pressure sensor signal
3 Brown DPF Pressure sensor power
4 Orange-red DPF Temperature sensor power supply
5 white-red CAN H
6 Yellow-blue CAN L
7 black DPF Temperature sensor ground
8 White-red CAN H
9 Yellow-blue CAN L
10 – –
