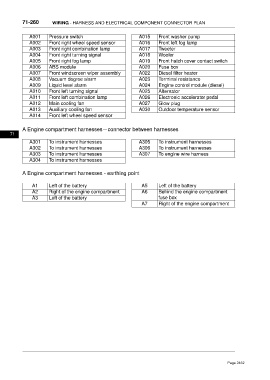

71-260 WIRING - HARNESS AND ELECTRICAL COMPONENT CONNECTOR PLAN

A001 Pressure switch A015 Front washer pump
A002 Front right wheel speed sensor A016 Front left fog lamp
A003 Front right combination lamp A017 Tweeter
A004 Front right turning signal A018 Woofer
A005 Front right fog lamp A019 Front hatch cover contact switch
A006 ABS module A020 Fuse box
A007 Front windscreen wiper assembly A022 Diesel filter heater
A008 Vacuum degree alarm A023 Terminal resistance
A009 Liquid level alarm A024 Engine control module (diesel)
A010 Front left turning signal A025 Alternator
A011 Front left combination lamp A026 Electronic accelerator pedal
A012 Main cooling fan A027 Glow plug
A013 Auxiliary cooling fan A030 Outdoor temperature sensor
A014 Front left wheel speed sensor

A Engine compartment harnesses－connector between harnesses
71

A301 To instrument harnesses A305 To instrument harnesses
A302 To instrument harnesses A306 To instrument harnesses
A303 To instrument harnesses A307 To engine wire harness
A304 To instrument harnesses

A Engine compartment harnesses - earthing point

A1 Left of the battery A5 Left of the battery
A2 Right of the engine compartment A6 Behind the engine compartment
A3 Left of the battery fuse box
A7 Right of the engine compartment
