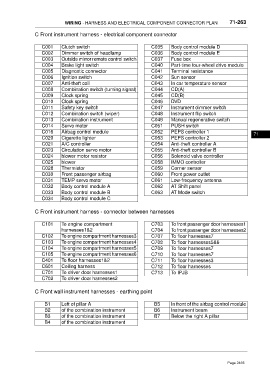

WIRING - HARNESS AND ELECTRICAL COMPONENT CONNECTOR PLAN 71-263

C Front instrument harness - electrical component connector

C001 Clutch switch C035 Body control module D
C002 Dimmer switch of headlamp C036 Body control module E
C003 Outside mirror remote control switch C037 Fuse box
C004 Brake light switch C040 Part-time four-wheel drive module
C005 Diagnostic connector C041 Terminal resistance
C006 Ignition switch C042 Sun sensor
C007 Anti-theft coil C043 In car temperature sensor
C008 Combination switch (turning signal) C044 CD(A)
C009 Clock spring C045 CD(B)
C010 Clock spring C046 DVD
C011 Safety key switch C047 Instrument dimmer switch
C012 Combination switch (wiper) C048 Instrument flip switch
C013 Combination instrument C049 Manual regenerative switch
C014 Servo motor C051 PUSH switch
C016 Airbag control module C052 PEPS controller 1
71
C020 Cigarette lighter C053 PEPS controller 2
C021 A/C controller C054 Anti-theft controller A
C023 Circulation servo motor C055 Anti-theft controller B
C024 blower motor resistor C056 Solenoid valve controller
C025 blower C058 IMMO controller
C028 Thermistor C059 Corner sensor
C030 Front passenger airbag C060 Front power outlet
C031 TEMP servo motor C061 Low-frequency antenna
C032 Body control module A C062 AT Shift panel
C033 Body control module B C063 AT Mode switch
C034 Body control module C

C Front instrument harness - connector between harnesses

C101 To engine compartment C703 To front passenger door harnesses1
harnesses1&2 C704 To front passenger door harnesses2
C102 To engine compartment harnesses3 C707 To floor harnesses7
C103 To engine compartment harnesses4 C708 To floor harnesses5&6
C104 To engine compartment harnesses5 C709 To floor harnesses7
C105 To engine compartment harnesses6 C710 To floor harnesses7
C401 To floor harnesses1&2 C711 To floor harnesses3
C601 Ceiling harness C712 To floor harnesses
C701 To driver door harnesses1 C713 To IPJB
C702 To driver door harnesses2

C Front wall instrument harnesses - earthing point

B1 Left of pillar A B5 In front of the airbag control module
B2 of the combination instrument B6 Instrument beam
B3 of the combination instrument B7 Below the right A pillar
B4 of the combination instrument
