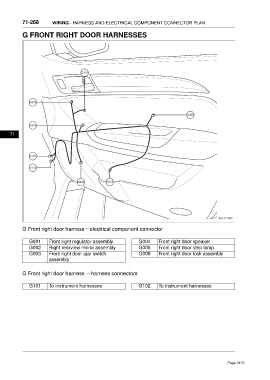

71-268 WIRING - HARNESS AND ELECTRICAL COMPONENT CONNECTOR PLAN
G FRONT RIGHT DOOR HARNESSES
71
G Front right door harness－electrical component connector
G001 Front right regulator assembly G004 Front right door speaker
G002 Right rearview mirror assembly G005 Front right door step lamp
G003 Front right door ajar switch G006 Front right door lock assembly
assembly
G Front right door harness －harness connectors
G101 To instrument harnesses G102 To instrument harnesses
