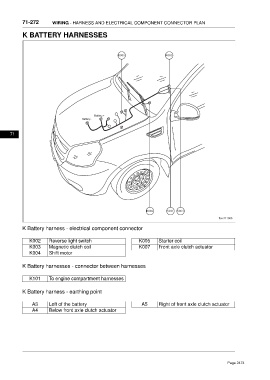

71-272 WIRING - HARNESS AND ELECTRICAL COMPONENT CONNECTOR PLAN
K BATTERY HARNESSES
71
K Battery harness - electrical component connector
K002 Reverse light switch K005 Starter coil
K003 Magnetic clutch coil K007 Front axle clutch actuator
K004 Shift motor
K Battery harnesses - connector between harnesses
K101 To engine compartment harnesses
K Battery harness - earthing point
A3 Left of the battery A5 Right of front axle clutch actuator
A4 Below front axle clutch actuator
