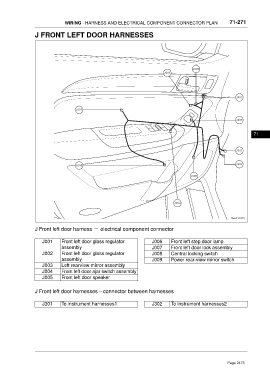

WIRING - HARNESS AND ELECTRICAL COMPONENT CONNECTOR PLAN 71-271
J FRONT LEFT DOOR HARNESSES
J009
J001
J003
J007
J008
71
J301
J006 J302
J005
J004
ftwx711010
J Front left door harness － electrical component connector
J001 Front left door glass regulator J006 Front left step door lamp
assembly J007 Front left door lock assembly
J002 Front left door glass regulator J008 Central locking switch
assembly J009 Power rear-view mirror switch
J003 Left rearview mirror assembly
J004 Front left door ajar switch assembly
J005 Front left door speaker
J Front left door harnesses－connector between harnesses
J301 To instrument harnesses1 J302 To instrument harnesses2
