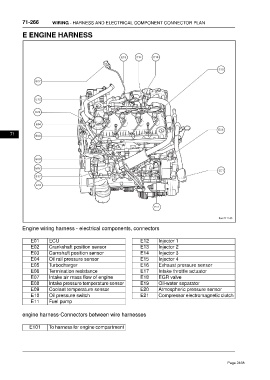

71-266 WIRING - HARNESS AND ELECTRICAL COMPONENT CONNECTOR PLAN

E ENGINE HARNESS

71

Engine wiring harness - electrical components, connectors

E01 ECU E12 Injector 1
E02 Crankshaft position sensor E13 Injector 2
E03 Camshaft position sensor E14 Injector 3
E04 Oil rail pressure sensor E15 Injector 4
E05 Turbocharger E16 Exhaust pressure sensor
E06 Termination resistance E17 Intake throttle actuator
E07 Intake air mass flow of engine E18 EGR valve
E08 Intake pressure temperature sensor E19 Oil-water separator
E09 Coolant temperature sensor E20 Atmospheric pressure sensor
E10 Oil pressure switch E21 Compressor electromagnetic clutch
E11 Fuel pump

engine harness-Connectors between wire harnesses

E101 To harness for engine compartment
