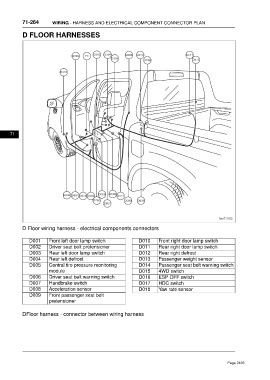

71-264 WIRING - HARNESS AND ELECTRICAL COMPONENT CONNECTOR PLAN

D FLOOR HARNESSES

71

D Floor wiring harness - electrical components connectors

D001 Front left door lamp switch D010 Front right door lamp switch
D002 Driver seat belt pretensioner D011 Rear right door lamp switch
D003 Rear left door lamp switch D012 Rear right defrost
D004 Rear left defrost D013 Passenger weight sensor
D005 Central tire pressure monitoring D014 Passenger seat belt warning switch
module D015 4WD switch
D006 Driver seat belt warning switch D016 ESP OFF switch
D007 Handbrake switch D017 HDC switch
D008 Acceleration sensor D018 Yaw rate sensor
D009 Front passenger seat belt
pretensioner

DFloor harness - connector between wiring harness
