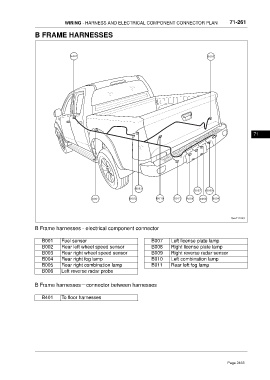

WIRING - HARNESS AND ELECTRICAL COMPONENT CONNECTOR PLAN 71-261

B FRAME HARNESSES

B401 B005

71

B003
B007 B009
B001 B002 B010 B011 B006 B008 B004

ftwx711243

B Frame harnesses - electrical component connector

B001 Fuel sensor B007 Left license plate lamp
B002 Rear left wheel speed sensor B008 Right license plate lamp
B003 Rear right wheel speed sensor B009 Right reverse radar sensor
B004 Rear right fog lamp B010 Left combination lamp
B005 Rear right combination lamp B011 Rear left fog lamp
B006 Left reverse radar probe

B Frame harnesses－connector between harnesses

B401 To floor harnesses
