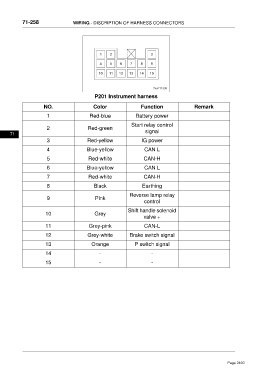

71-258 WIRING - DISCRIPTION OF HARNESS CONNECTORS
P201 Instrument harness
NO. Color Function Remark
1 Red-blue Battery power
Start relay control
2 Red-green
71 signal
3 Red-yellow IG power
4 Blue-yellow CAN L
5 Red-white CAN-H
6 Blue-yellow CAN L
7 Red-white CAN-H
8 Black Earthing
Reverse lamp relay
9 Pink
control
Shift handle solenoid
10 Grey
valve +
11 Grey-pink CAN-L
12 Grey-white Brake switch signal
13 Orange P switch signal
14 - -
15 - -
