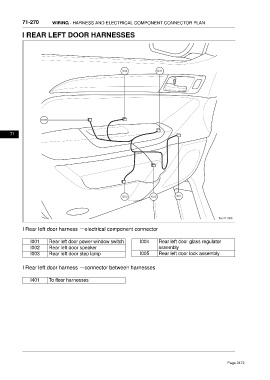

71-270        WIRING - HARNESS AND ELECTRICAL COMPONENT CONNECTOR PLAN

           I REAR LEFT DOOR HARNESSES


























      71

























           I Rear left door harness －electrical component connector


               I001    Rear left door power window switch       I004     Rear left door glass regulator
               I002    Rear left door speaker                            assembly
               I003    Rear left door step lamp                 I005     Rear left door lock assembly


           I Rear left door harness －connector between harnesses


               I401    To floor harnesses
