P. 2454

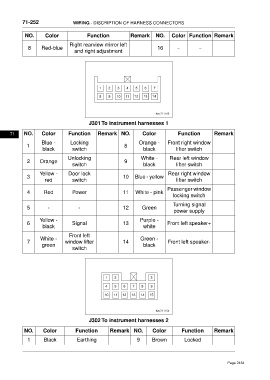

71-252 WIRING - DISCRIPTION OF HARNESS CONNECTORS
NO. Color Function Remark NO. Color Function Remark
Right rearview mirror left
8 Red-blue 16 – –
and right adjustment
12 13 14
ftwx711186
J301 To instrument harnesses 1
71 NO. Color Function Remark NO. Color Function Remark
Blue - Locking Orange - Front right window
1 8
black switch black lifter switch
Unlocking White - Rear left window
2 Orange 9
switch black lifter switch
Yellow - Door lock Rear right window
3 10 Blue - yellow
red switch lifter switch
Passenger window
4 Red Power 11 White - pink
locking switch
Turning signal
5 - - 12 Green
power supply
Yellow - Purple -
6 Signal 13 Front left speaker+
black white
Front left
White - Green -
7 window lifter 14 Front left speaker-
green black
switch
15
ftwx711154
J302 To instrument harnesses 2
NO. Color Function Remark NO. Color Function Remark
1 Black Earthing 9 Brown Locked
