Page 2449 - Foton Workshop Manual - Tunland (AT)

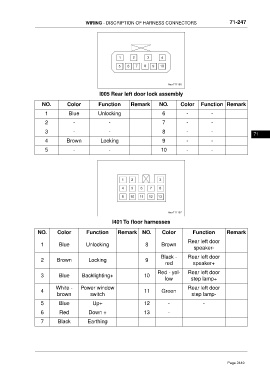

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-247

2 3
5 6 7 8 9 10

ftwx711185

I005 Rear left door lock assembly

NO. Color Function Remark NO. Color Function Remark

1 Blue Unlocking 6 - -
2 - - 7 - -

3 - - 8 - -
71
4 Brown Locking 9 - -

5 - - 10 - -

12 13

ftwx711187
I401 To floor harnesses

NO. Color Function Remark NO. Color Function Remark

Rear left door
1 Blue Unlocking 8 Brown
speaker-
Black - Rear left door
2 Brown Locking 9
red speaker+
Red - yel- Rear left door
3 Blue Backlighting+ 10
low step lamp+

White - Power window Rear left door
4 11 Green
brown switch step lamp-
5 Blue Up+ 12 - -

6 Red Down + 13 -
7 Black Earthing

Page 2449
