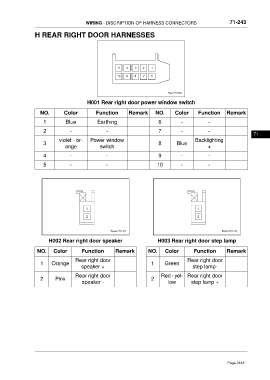

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-243
H REAR RIGHT DOOR HARNESSES
5 4 3 2 1
10 9 8 7 6
ftwx711032
H001 Rear right door power window switch
NO. Color Function Remark NO. Color Function Remark
1 Blue Earthing 6 - -
2 - - 7 - -
71
violet - or- Power window Backlighting
3 8 Blue
ange switch +
4 - - 9 - -
5 - - 10 - -
H002 Rear right door speaker H003 Rear right door step lamp
NO. Color Function Remark NO. Color Function Remark
Rear right door Rear right door
1 Orange 1 Green
speaker + step lamp-
Rear right door Red - yel- Rear right door
2 Pink 2
speaker - low step lamp +
