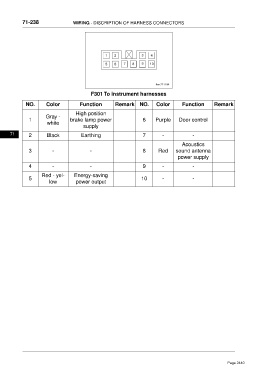

71-238 WIRING - DISCRIPTION OF HARNESS CONNECTORS
3 4
7 8 9 10
ftwx711184
F301 To instrument harnesses
NO. Color Function Remark NO. Color Function Remark
High position
Gray -
1 brake lamp power 6 Purple Door control
white
supply
71 2 Black Earthing 7 - -
Acoustics
3 - - 8 Red sound antenna
power supply
4 - - 9 - -
Red - yel- Energy-saving
5 10 - -
low power output
