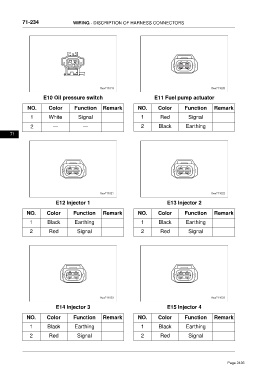

71-234 WIRING - DISCRIPTION OF HARNESS CONNECTORS
E10 Oil pressure switch E11 Fuel pump actuator
NO. Color Function Remark NO. Color Function Remark
1 White Signal 1 Red Signal
2 — — 2 Black Earthing
71
E12 Injector 1 E13 Injector 2
NO. Color Function Remark NO. Color Function Remark
1 Black Earthing 1 Black Earthing
2 Red Signal 2 Red Signal
E14 Injector 3 E15 Injector 4
NO. Color Function Remark NO. Color Function Remark
1 Black Earthing 1 Black Earthing
2 Red Signal 2 Red Signal
