P. 2435

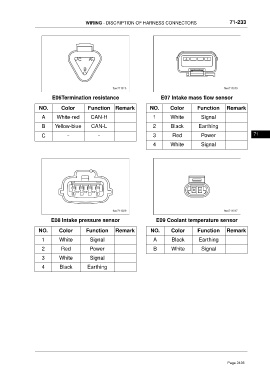

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-233
E06Termination resistance E07 Intake mass flow sensor
NO. Color Function Remark NO. Color Function Remark
A White-red CAN-H 1 White Signal
B Yellow-blue CAN-L 2 Black Earthing
C – – 3 Red Power 71
4 White Signal
E08 Intake pressure sensor E09 Coolant temperature sensor
NO. Color Function Remark NO. Color Function Remark
1 White Signal A Black Earthing
2 Red Power B White Signal
3 White Signal
4 Black Earthing
