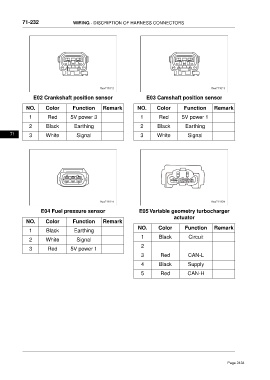

71-232 WIRING - DISCRIPTION OF HARNESS CONNECTORS
E02 Crankshaft position sensor E03 Camshaft position sensor
NO. Color Function Remark NO. Color Function Remark
1 Red 5V power 3 1 Red 5V power 1
2 Black Earthing 2 Black Earthing
71 3 White Signal 3 White Signal
E04 Fuel pressure sensor E05 Variable geometry turbocharger
actuator
NO. Color Function Remark
NO. Color Function Remark
1 Black Earthing
1 Black Circuit
2 White Signal
2
3 Red 5V power 1
3 Red CAN-L
4 Black Supply
5 Red CAN-H
