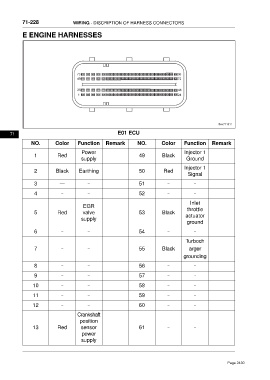

71-228 WIRING - DISCRIPTION OF HARNESS CONNECTORS

E ENGINE HARNESSES

71 E01 ECU

NO. Color Function Remark NO. Color Function Remark
Power Injector 1
1 Red 49 Black
supply Ground

Injector 1
2 Black Earthing 50 Red
Signal
3 — – 51 – –

4 – – 52 – –

Inlet
EGR
throttle
5 Red valve 53 Black
actuator
supply
ground
6 – – 54 – –

Turboch
7 – – 55 Black arger
grounding
8 – – 56 – –

9 – – 57 – -

10 – – 58 – –

11 – – 59 – –

12 – – 60 – –
Crankshaft
position
13 Red sensor 61 – –
power
supply
