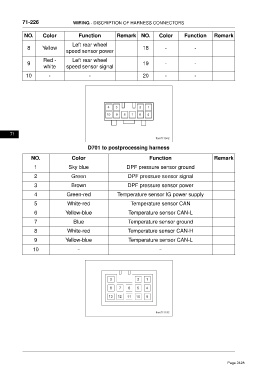

71-226 WIRING - DISCRIPTION OF HARNESS CONNECTORS
NO. Color Function Remark NO. Color Function Remark
Left rear wheel
8 Yellow 18 - -
speed sensor power
Red - Left rear wheel
9 19 - -
white speed sensor signal
10 - - 20 - -
71
D701 to postprocessing harness
NO. Color Function Remark
1 Sky blue DPF pressure sensor ground
2 Green DPF pressure sensor signal
3 Brown DPF pressure sensor power
4 Green-red Temperature sensor IG power supply
5 White-red Temperature sensor CAN
6 Yellow-blue Temperature sensor CAN-L
7 Blue Temperature sensor ground
8 White-red Temperature sensor CAN-H
9 Yellow-blue Temperature sensor CAN-L
10 – –
