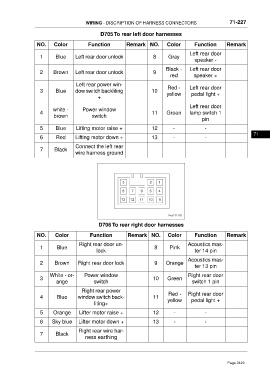

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-227
D705 To rear left door harnesses
NO. Color Function Remark NO. Color Function Remark
Left rear door
1 Blue Left rear door unlock 8 Gray
speaker -
Black - Left rear door
2 Brown Left rear door unlock 9
red speaker +
Left rear power win-
Red - Left rear door
3 Blue dow switch backliting 10
yellow pedal light +
+
Left rear door
white - Power window
4 11 Green lamp switch 1
brown switch
pin
5 Blue Lifting motor raise + 12 - -
71
6 Red Lifting motor down + 13 - -
Connect the left rear
7 Black
wire harness ground
D706 To rear right door harnesses
NO. Color Function Remark NO. Color Function Remark
Right rear door un- Acoustics mas-
1 Blue 8 Pink
lock ter 14 pin
Acoustics mas-
2 Brown Right rear door lock 9 Orange
ter 13 pin
White - or- Power window Right rear door
3 10 Green
ange switch switch 1 pin
Right rear power
Red - Right rear door
4 Blue window switch back- 11
yellow pedal light +
liting+
5 Orange Lifter motor raise + 12 - -
6 Sky blue Lifter motor down + 13 - -
Right rear wire har-
7 Black
ness earthing
