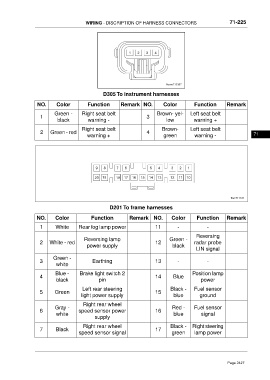

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-225

D305 To instrument harnesses

NO. Color Function Remark NO. Color Function Remark

Green - Right seat belt Brown- yel- Left seat belt
1 3
black warning - low warning +
Right seat belt Brown- Left seat belt
2 Green - red 4
warning + green warning - 71

20 19 18 11

ftwx711181

D201 To frame harnesses

NO. Color Function Remark NO. Color Function Remark

1 White Rear fog lamp power 11 - -
Reversing
Reversing lamp Green -
2 White - red 12 radar probe
power supply black
LIN signal
Green -
3 Earthing 13 - -
white

Blue - Brake light switch 2 Position lamp
4 14 Blue
black pin power
Left rear steering Black - Fuel sensor
5 Green 15
light power supply blue ground
Right rear wheel
Gray - Red - Fuel sensor
6 speed sensor power 16
white blue signal
supply

Right rear wheel Black - Right steering
7 Black 17
speed sensor signal green lamp power
