P. 2422

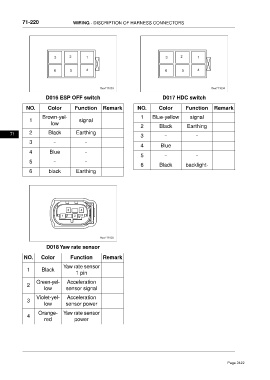

71-220 WIRING - DISCRIPTION OF HARNESS CONNECTORS
D016 ESP OFF switch D017 HDC switch
NO. Color Function Remark NO. Color Function Remark
Brown-yel- 1 Blue-yellow signal
1 signal
low
2 Black Earthing
71 2 Black Earthing
3 – –
3 – –
4 Blue –
4 Blue –
5 – –
5 – –
6 Black backlight-
6 black Earthing
D018 Yaw rate sensor
NO. Color Function Remark
Yaw rate sensor
1 Black
1 pin
Green-yel- Acceleration
2
low sensor signal
Violet-yel- Acceleration
3
low sensor power
Orange- Yaw rate sensor
4
red power
