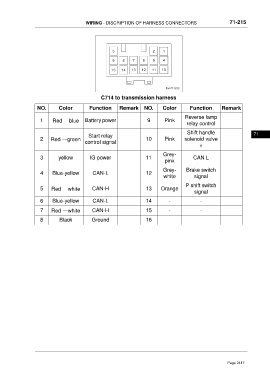

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-215
C714 to transmission harness
NO. Color Function Remark NO. Color Function Remark
Reverse lamp
1 Red —blue Battery power 9 Pink
relay control
Shift handle
Start relay 71
2 Red —green 10 Pink solenoid valve
control signal
+
Grey-
3 yellow IG power 11 CAN L
pink
Grey- Brake switch
4 Blue-yellow CAN-L 12
white signal
P shift switch
5 Red —white CAN-H 13 Orange
signal
6 Blue-yellow CAN-L 14 - -
7 Red —white CAN-H 15 - -
8 Black Ground 16
