P. 2412

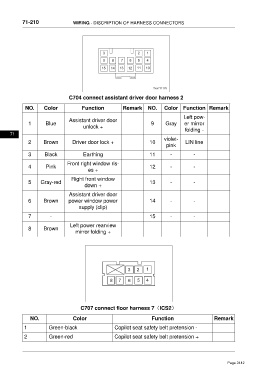

71-210 WIRING - DISCRIPTION OF HARNESS CONNECTORS
C704 connect assistant driver door harness 2
NO. Color Function Remark NO. Color Function Remark
Left pow-
Assistant driver door
1 Blue 9 Gray er mirror
unlock +
folding -
71
violet-
2 Brown Driver door lock + 10 LIN line
pink
3 Black Earthing 11 - -
Front right window ris-
4 Pink 12 - -
es +
Right front window
5 Gray-red 13 - -
down +
Assistant driver door
6 Brown power window power 14 - -
supply (clip)
7 - 15 - -
Left power rearview
8 Brown
mirror folding +
C707 connect floor harness 7（ICS2）
NO. Color Function Remark
1 Green-black Copilot seat safety belt pretension -
2 Green-red Copilot seat safety belt pretension +
