WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-207

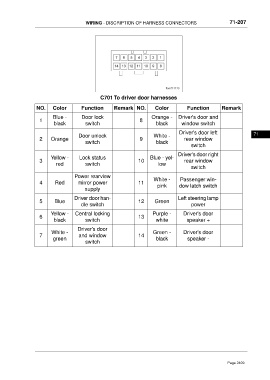

C701 To driver door harnesses

NO. Color Function Remark NO. Color Function Remark
Blue - Door lock Orange - Driver's door and
1 8
black switch black window switch

Driver's door left
Door unlock White - 71
2 Orange 9 rear window
switch black
switch
Driver's door right
Yellow - Lock status Blue - yel-
3 10 rear window
red switch low
switch
Power rearview
White - Passenger win-
4 Red mirror power 11
pink dow latch switch
supply
Driver door han- Left steering lamp
5 Blue 12 Green
dle switch power

Yellow - Central locking Purple - Driver's door
6 13
black switch white speaker +
Driver's door
White - Green - Driver's door
7 and window 14
green black speaker -
switch
