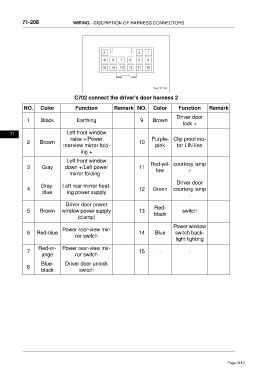

71-208 WIRING - DISCRIPTION OF HARNESS CONNECTORS
C702 connect the driver's door harness 2
NO. Color Function Remark NO. Color Function Remark
Driver door
1 Black Earthing 9 Brown
lock +
71 Left front window
raise +/Power Purple- Clip proof mo-
2 Brown 10
rearview mirror fold- pink tor LIN line
ing +
Left front window
Red-yel- courtesy lamp
3 Gray down +/Left power 11
low +
mirror folding -
Driver door
Gray- Left rear mirror heat-
4 12 Green courtesy lamp
blue ing power supply
-
Driver door power
Red-
5 Brown window power supply 13 black switch
(clamp)
Power window
Power rear-view mir-
6 Red-blue 14 Blue switch back-
ror switch
light lighting
Red-or- Power rear-view mir-
7 15 - -
ange ror switch
Blue- Driver door unlock
8
black switch
