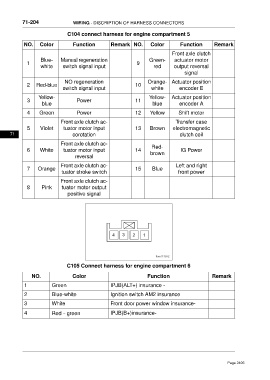

71-204 WIRING - DISCRIPTION OF HARNESS CONNECTORS

C104 connect harness for engine compartment 5

NO. Color Function Remark NO. Color Function Remark
Front axle clutch
Blue- Manual regeneration Green- actuator motor
1 9
white switch signal input red output reversal
signal
NO regeneration Orange- Actuator position
2 Red-blue 10
switch signal input white encoder E

Yellow- Yellow- Actuator position
3 Power 11
blue blue encoder A
4 Green Power 12 Yellow Shift motor

Front axle clutch ac- Transfer case
5 Violet tuator motor input 13 Brown electromagnetic
71 corotation clutch coil

Front axle clutch ac-
Red-
6 White tuator motor input 14 IG Power
brown
reversal
Front axle clutch ac- Left and right
7 Orange 15 Blue
tuator stroke switch front power
Front axle clutch ac-
8 Pink tuator motor output
positive signal

C105 Connect harness for engine compartment 6

NO. Color Function Remark

1 Green IPJB(ALT+) insurance -

2 Blue-white Ignition switch AM2 insurance
3 White Front door power window insurance-

4 Red–green IPJB(B+)insurance-
