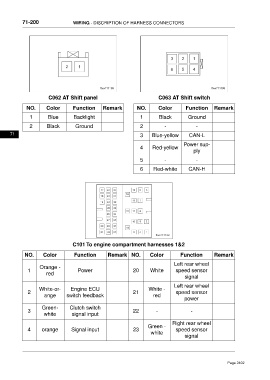

71-200 WIRING - DISCRIPTION OF HARNESS CONNECTORS
C062 AT Shift panel C063 AT Shift switch
NO. Color Function Remark NO. Color Function Remark
1 Blue Backlight 1 Black Ground
2 Black Ground 2 - -
71 3 Blue-yellow CAN-L
Power sup-
4 Red-yellow
ply
5 - -
6 Red-white CAN-H
C101 To engine compartment harnesses 1&2
NO. Color Function Remark NO. Color Function Remark
Left rear wheel
Orange -
1 Power 20 White speed sensor
red
signal
Left rear wheel
White-or- Engine ECU White -
2 21 speed sensor
ange switch feedback red
power
Green- Clutch switch
3 22 – -
white signal input
Right rear wheel
Green -
4 orange Signal input 23 speed sensor
white
signal
