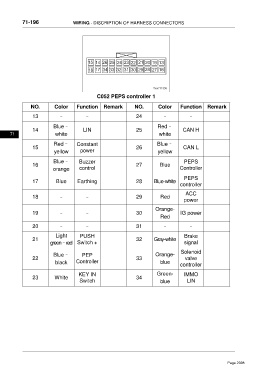

71-196 WIRING - DISCRIPTION OF HARNESS CONNECTORS

C052 PEPS controller 1

NO. Color Function Remark NO. Color Function Remark
13 – – 24 – –

Blue– Red–
14 LIN 25 CAN H
71 white white

Red– Constant Blue–
15 26 CAN L
yellow power yellow

Blue– Buzzer PEPS
16 27 Blue
orange control Controller

PEPS
17 Blue Earthing 28 Blue-white
controller
ACC
18 – – 29 Red
power
Orange-
19 – – 30 IG power
Red
20 – – 31 – –

Light PUSH Brake
21 32 Gray-white
green– red Switch + signal

Solenoid
Blue– PEP Orange-
22 33 valve
black Controller blue
controller
KEY IN Green- IMMO
23 White 34
Switch blue LIN
