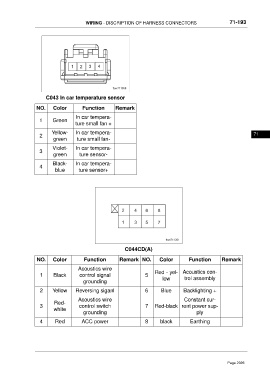

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-193
C043 In car temperature sensor
NO. Color Function Remark
In car tempera-
1 Green
ture small fan +
Yellow- In car tempera-
2 71
green ture small fan-
Violet- In car tempera-
3
green ture sensor-
Black- In car tempera-
4
blue ture sensor+
C044CD(A)
NO. Color Function Remark NO. Color Function Remark
Acoustics wire
Red–yel- Acoustics con-
1 Black control signal 5 trol assembly
grounding low
2 Yellow Reversing siganl 6 Blue Backlighting +
Acoustics wire Constant cur-
Red-
3 control switch 7 Red-black rent power sup-
white
grounding ply
4 Red ACC power 8 black Earthing
