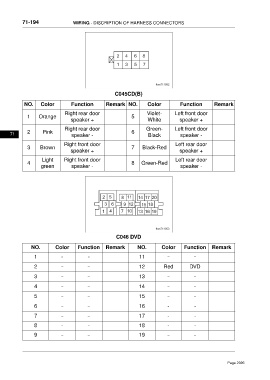

71-194 WIRING - DISCRIPTION OF HARNESS CONNECTORS

C045CD(B)

NO. Color Function Remark NO. Color Function Remark

Right rear door Violet- Left front door
1 Orange 5
speaker + White speaker +
Right rear door Green- Left front door
2 Pink 6
71 speaker - Black speaker -
Right front door Left rear door
3 Brown 7 Black-Red
speaker + speaker +
Light Right front door Left rear door
4 8 Green-Red
green speaker - speaker -

C046 DVD

NO. Color Function Remark NO. Color Function Remark

1 - - 11 – –

2 – – 12 Red DVD

3 – – 13 – –
4 – – 14 – –

5 – – 15 – –

6 – – 16 - -

7 – – 17 - -
8 - - 18 - -

9 – – 19 – –
