P. 2397

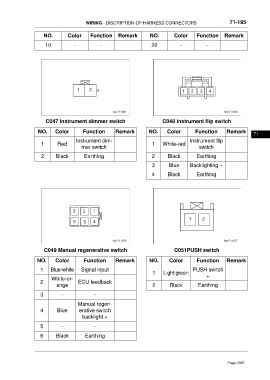

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-195
NO. Color Function Remark NO. Color Function Remark
10 - - 20 – –
C047 Instrument dimmer switch C048 Instrument flip switch
NO. Color Function Remark NO. Color Function Remark
71
Instrument dim- Instrument flip
1 Red 1 White-red
mer switch switch
2 Black Earthing 2 Black Earthing
3 Blue Backlighting +
4 Black Earthing
C049 Manual regenerative switch C051PUSH switch
NO. Color Function Remark NO. Color Function Remark
1 Blue-white Signal input PUSH switch
1 Light green
White-or- +
2 ECU feedback
ange 2 Black Earthing
3 – –
Manual regen-
4 Blue erative switch
backlight +
5 – –
6 Black Earthing
