Page 2394 - Foton Workshop Manual - Tunland (AT)
P. 2394

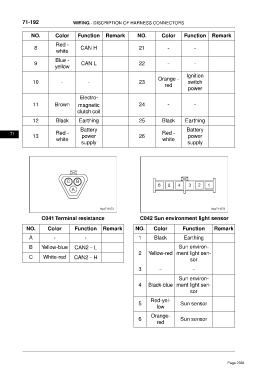

71-192 WIRING - DISCRIPTION OF HARNESS CONNECTORS
NO. Color Function Remark NO. Color Function Remark
Red -
8 CAN H 21 - -
white
Blue -
9 CAN L 22 - -
yellow
Ignition
Orange -
10 - - 23 switch
red
power
Electro-
11 Brown magnetic 24 - -
clutch coil
12 Black Earthing 25 Black Earthing
Battery Battery
71 Red - Red -
13 power 26 power
white white
supply supply
C041 Terminal resistance C042 Sun environment light sensor
NO. Color Function Remark NO. Color Function Remark
A - - 1 Black Earthing
B Yellow-blue CAN2–L Sun environ-
2 Yellow-red ment light sen-
C White-red CAN2–H
sor
3 – –
Sun environ-
4 Black-blue ment light sen-
sor
Red-yel-
5 Sun sensor
low
Orange-
6 Sun sensor
red
