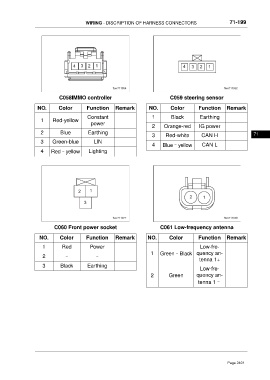

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-199
C058IMMO controller C059 steering sensor
NO. Color Function Remark NO. Color Function Remark
Constant 1 Black Earthing
1 Red-yellow
power
2 Orange-red IG power
2 Blue Earthing
3 Red-white CAN H 71
3 Green-blue LIN
4 Blue–yellow CAN L
4 Red–yellow Lighting
C060 Front power socket C061 Low-frequency antenna
NO. Color Function Remark NO. Color Function Remark
1 Red Power Low-fre-
1 Green–Black quency an-
2 – –
tenna 1+
3 Black Earthing
Low-fre-
2 Green quency an-
tenna 1–
