P. 2403

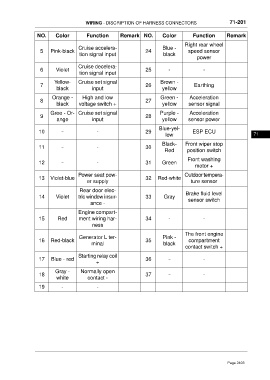

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-201
NO. Color Function Remark NO. Color Function Remark
Right rear wheel
Cruise accelera- Blue -
5 Pink-black 24 speed sensor
tion signal input black
power
Cruise decelera-
6 Violet 25 - -
tion signal input
Yellow- Cruise set signal Brown -
7 26 Earthing
black input yellow
Orange - High and low Green - Acceleration
8 27
black voltage switch + yellow sensor signal
Gree - Or- Cruise set signal Purple - Acceleration
9 28
ange input yellow sensor power
Blue-yel-
10 – - 29 ESP ECU
low 71
Black- Front wiper stop
11 – - 30
Red position switch
Front washing
12 – - 31 Green
motor +
Power seat pow- Outdoor tempera-
13 Violet-blue 32 Red-white
er supply ture sensor
Rear door elec-
Brake fluid level
14 Violet tric window insur- 33 Gray sensor switch
ance -
Engine compart-
15 Red ment wiring har- 34 - -
ness
The front engine
Generator L ter- Pink -
16 Red-black 35 compartment
minal black
contact switch +
Starting relay coil
17 Blue - red 36 – -
+
Gray - Normally open
18 37 – -
white contact -
19 - -
