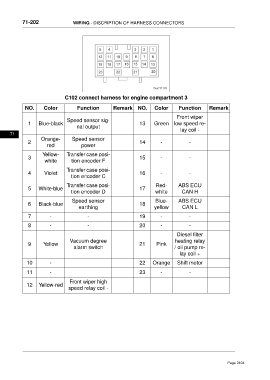

71-202 WIRING - DISCRIPTION OF HARNESS CONNECTORS
C102 connect harness for engine compartment 3
NO. Color Function Remark NO. Color Function Remark
Front wiper
Speed sensor sig-
1 Blue-black 13 Green low speed re-
nal output
lay coil -
71
Orange- Speed sensor
2 14 - -
red power
Yellow- Transfer case posi-
3 15 - -
white tion encoder F
Transfer case posi-
4 Violet 16 - -
tion encoder C
Transfer case posi- Red- ABS ECU
5 White-blue 17
tion encoder D white CAN H
Speed sensor Blue- ABS ECU
6 Black-blue 18
earthing yellow CAN L
7 - - 19 - -
8 - - 20 - -
Diesel filter
Vacuum degree heating relay
9 Yellow 21 Pink
alarm switch / oil pump re-
lay coil +
10 - 22 Orange Shift motor
11 - 23 - –
Front wiper high
12 Yellow-red
speed relay coil -
