P. 2400

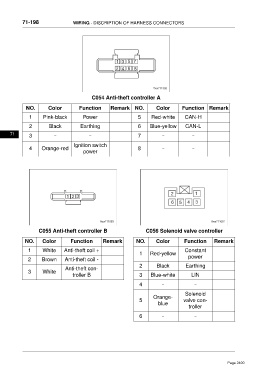

71-198 WIRING - DISCRIPTION OF HARNESS CONNECTORS
C054 Anti-theft controller A
NO. Color Function Remark NO. Color Function Remark
1 Pink-black Power 5 Red-white CAN-H
2 Black Earthing 6 Blue-yellow CAN-L
71
3 – – 7 – –
Ignition switch
4 Orange-red 8 – –
power
C055 Anti-theft controller B C056 Solenoid valve controller
NO. Color Function Remark NO. Color Function Remark
1 White Anti-theft coil + Constant
1 Red-yellow
2 Brown Anti-theft coil - power
2 Black Earthing
Anti-theft con-
3 White
troller B 3 Blue-white LIN
4 – –
Solenoid
Orange-
5 valve con-
blue
troller
6 – –
