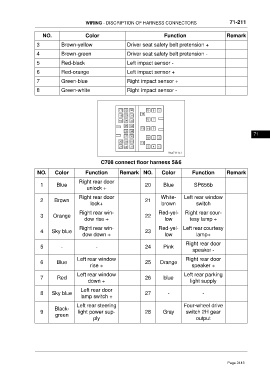

P. 2413
WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-211
NO. Color Function Remark
3 Brown-yellow Driver seat safety belt pretension +
4 Brown-green Driver seat safety belt pretension -
5 Red-black Left impact sensor -
6 Red-orange Left impact sensor +
7 Green-blue Right impact sensor +
8 Green-white Right impact sensor -
71
C708 connect floor harness 5&6
NO. Color Function Remark NO. Color Function Remark
Right rear door
1 Blue 20 Blue SP656b
unlock +
Right rear door White- Left rear window
2 Brown 21
lock+ brown switch
Right rear win- Red-yel- Right rear cour-
3 Orange 22
dow rise + low tesy lamp +
Right rear win- Red-yel- Left rear courtesy
4 Sky blue 23
dow down + low lamp+
Right rear door
5 - - 24 Pink
speaker -
Left rear window Right rear door
6 Blue 25 Orange
rise + speaker +
Left rear window Left rear parking
7 Red 26 blue
down + light supply
Left rear door
8 Sky blue 27 - -
lamp switch +
Left rear steering Four-wheel drive
Black-
9 light power sup- 28 Gray switch 2H gear
green
ply output
