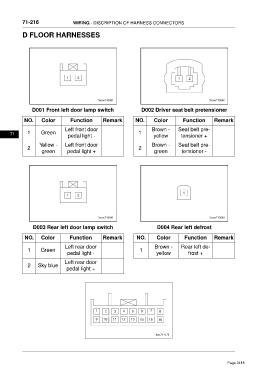

71-216 WIRING - DISCRIPTION OF HARNESS CONNECTORS
D FLOOR HARNESSES
D001 Front left door lamp switch D002 Driver seat belt pretensioner
NO. Color Function Remark NO. Color Function Remark
Left front door Brown - Seat belt pre-
71 1 Green 1
pedal light - yellow tensioner +
Yellow - Left front door Brown - Seat belt pre-
2 2
green pedal light + green tensioner -
D003 Rear left door lamp switch D004 Rear left defrost
NO. Color Function Remark NO. Color Function Remark
Left rear door Brown - Rear left de-
1 Green 1
pedal light - yellow frost +
Left rear door
2 Sky blue
pedal light +
1 2 3 4 5 6 7
9 10 11 12 13 14 15
