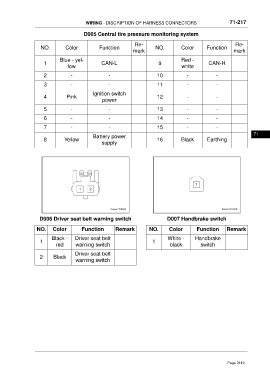

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-217
D005 Central tire pressure monitoring system
Re- Re-
NO. Color Function NO. Color Function
mark mark
Blue - yel- Red -
1 CAN-L 9 CAN-H
low white
2 - - 10 - -
3 - - 11 - -
Ignition switch
4 Pink 12 - -
power
5 - - 13 - -
6 - - 14 - -
7 - - 15 - -
71
Battery power
8 Yellow 16 Black Earthing
supply
D006 Driver seat belt warning switch D007 Handbrake switch
NO. Color Function Remark NO. Color Function Remark
Black - Driver seat belt White - Handbrake
1 1
red warning switch black switch
Driver seat belt
2 Black
warning switch
