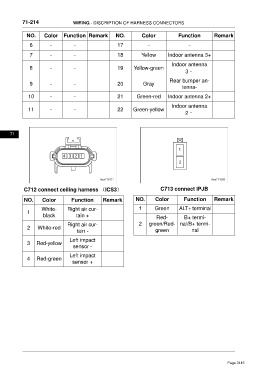

71-214 WIRING - DISCRIPTION OF HARNESS CONNECTORS
NO. Color Function Remark NO. Color Function Remark
6 – – 17 – –
7 – – 18 Yellow Indoor antenna 3+
Indoor antenna
8 – – 19 Yellow-green
3–
Rear bumper an-
9 – – 20 Gray
tenna-
10 – – 21 Green-red Indoor antenna 2+
Indoor antenna
11 – – 22 Green-yellow
2–
71
C712 connect ceiling harness （ICS3） C713 connect IPJB
NO. Color Function Remark NO. Color Function Remark
White- Right air cur- 1 Green ALT+ terminal
1
black tain + Red- B+ termi-
Right air cur- 2 green/Red- nal/B+ termi-
2 White-red
tain - green nal
Left impact
3 Red-yellow
sensor -
Left impact
4 Red-green
sensor +
