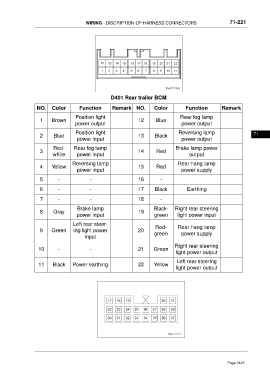

WIRING - DISCRIPTION OF HARNESS CONNECTORS 71-221

D401 Rear trailer BCM

NO. Color Function Remark NO. Color Function Remark
Position light Rear fog lamp
1 Brown 12 Blue
power output power output

Position light Reversing lamp
2 Blue 13 Black 71
power input power output
Red- Rear fog lamp Brake lamp power
3 14 Red
white power input output

Reversing lamp Rear hang lamp
4 Yellow 15 Red
power input power supply
5 – – 16 –

6 – – 17 Black Earthing

7 – – 18 –
Brake lamp Black- Right rear steering
8 Gray 19
power input green light power input

Left rear steer-
Red- Rear hang lamp
9 Green ing light power 20
green power supply
input
Right rear steering
10 – – 21 Green
light power output
Left rear steering
11 Black Power earthing 22 Yellow
light power output

35
