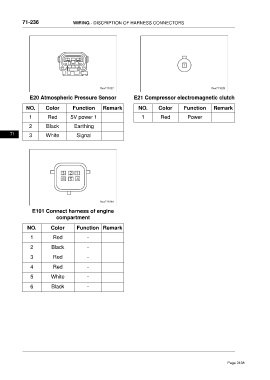

71-236 WIRING - DISCRIPTION OF HARNESS CONNECTORS

E20 Atmospheric Pressure Sensor E21 Compressor electromagnetic clutch

NO. Color Function Remark NO. Color Function Remark
1 Red 5V power 1 1 Red Power

2 Black Earthing
71 3 White Signal

E101 Connect harness of engine
compartment

NO. Color Function Remark
1 Red –

2 Black –

3 Red –

4 Red –

5 White –
6 Black –
