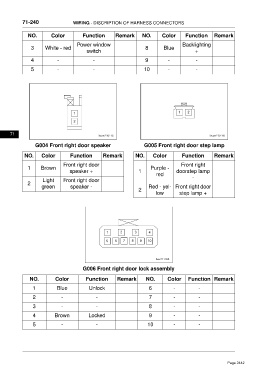

71-240 WIRING - DISCRIPTION OF HARNESS CONNECTORS
NO. Color Function Remark NO. Color Function Remark
Power window Backlighting
3 White - red 8 Blue
switch +
4 - - 9 - -
5 - - 10 - -
71
G004 Front right door speaker G005 Front right door step lamp
NO. Color Function Remark NO. Color Function Remark
Front right door Front right
1 Brown Purple -
speaker + 1 doorstep lamp
red
Light Front right door -
2
green speaker - Red - yel- Front right door
2
low step lamp +
2 3
5 6 7 8 9 10
ftwx711185
G006 Front right door lock assembly
NO. Color Function Remark NO. Color Function Remark
1 Blue Unlock 6 - -
2 - - 7 - -
3 - - 8 - -
4 Brown Locked 9 - -
5 - - 10 - -
